FUEL STATION 400 SKID

FUELING SOLUTIONS FOR WORK AND PLAY

400 Gallon Tank Capacity

DOT Compliant

NO CDL or HAZMAT REQUIRED (Diesel)

mobile fueling solutions

” Refuel the smart and easy way with fuel station 400 skid”

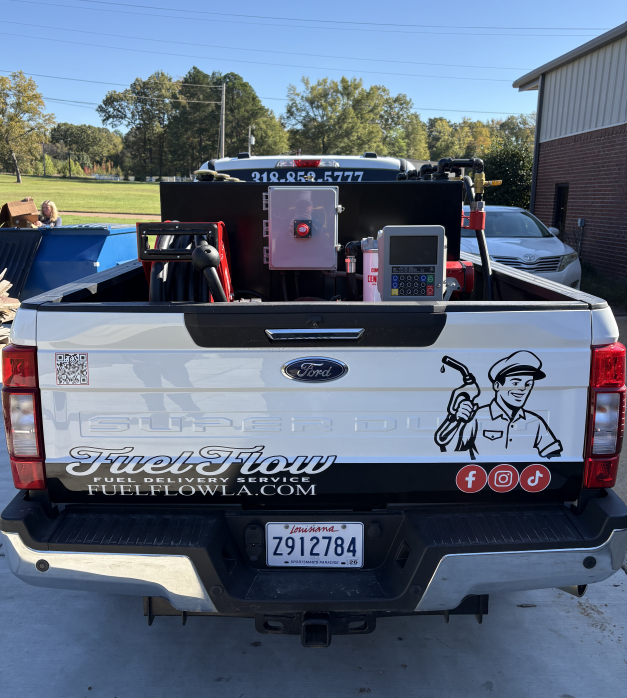

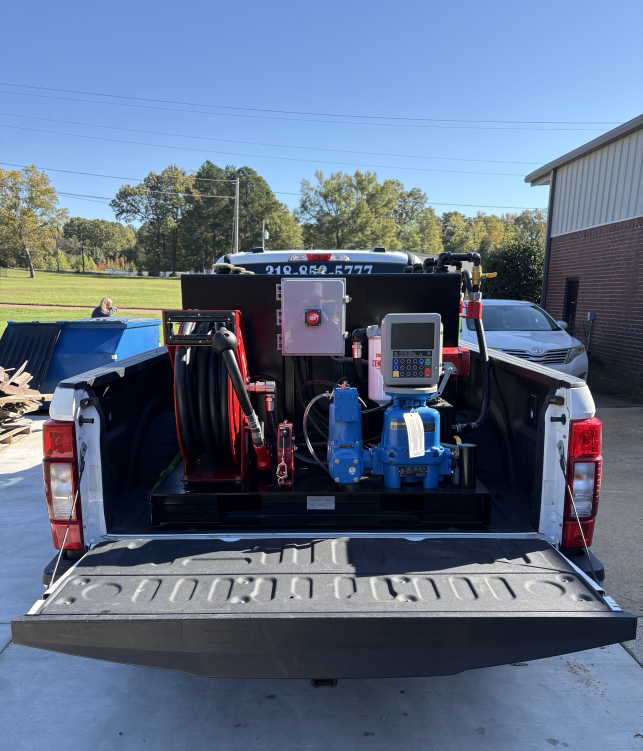

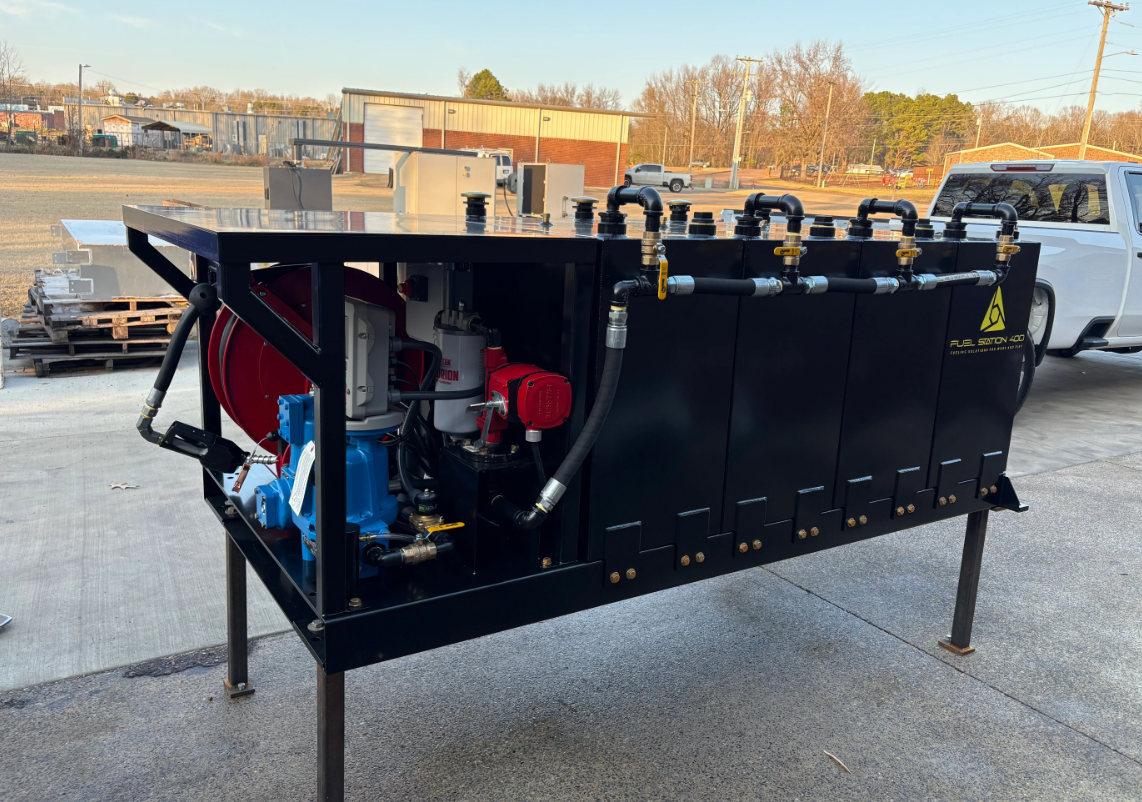

The Fuel Station 400 is a Skid Mounted/Mobile Fuel Dispensing System or Refueler that is manufactured to be mounted and attached to any 8 ft truck or flat bed. This unique and very versatile system can be used in many working scenarios due to the fact that it is equipped with a weights and measures meter for reselling fuel, the tanks themselves are completely separated (4- 100 gl) giving the unit the ability to disperse multiple fuel grades and can also be configured to handle a cloud based platform for data transfers.

Industries using the Fuel Station 400’s

SPECIFICATIONS

Model Name: Fuel Station 400 Skid

Tank Size: 400 Gallons

Tank Material: Aluminum

Fuel Types: Gasoline, Diesel

Dimensions: 95” length x 48” width x 36” height

Empty Weight: 1,100 Pounds (varies with options)
Frame Material: Steel



Flow Rate: 25 GPM maximum

Filter: 10 Micron Particulate

Nozzle: 3/4” Auto Shutoff

Fuel Hose: 1” x 50’

Grounding Cable: 55’ with Clamp

Voltage and Type: 12 Volt DC

Pump Draw: 35 Amps
